DA-PP Fiber Optic Distribution Frame

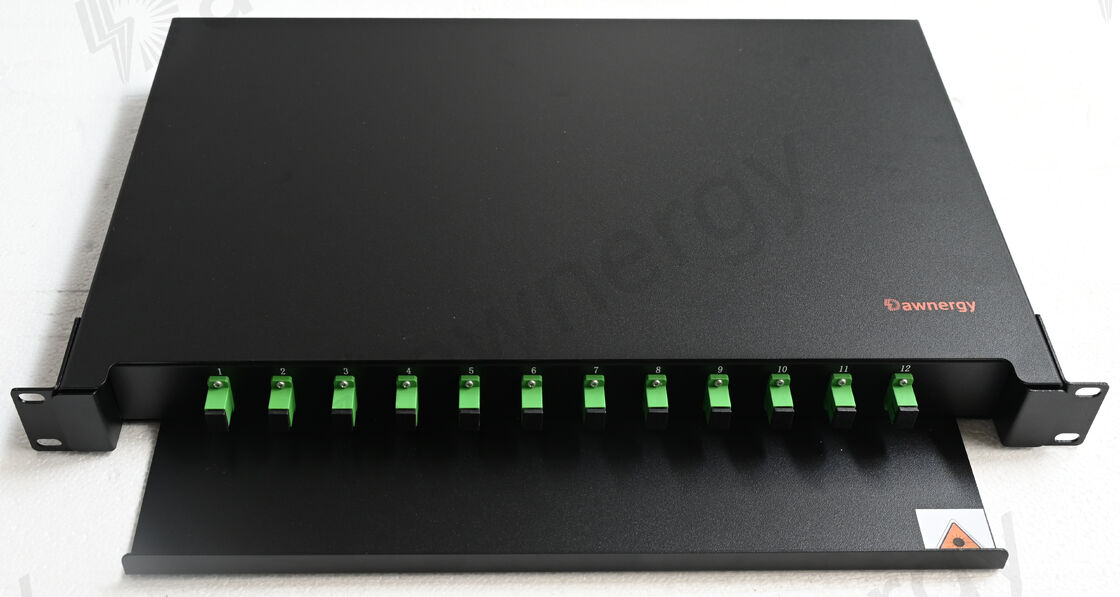

Dawnergy’s Rack-mount Fiber Optic Distribution Frame has cold steel sliding fittings with self-locking functions, preventing the drawer from falling when moved; 19-inch rack mount for SC or LC adapters. Max up to 144cores. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
24F Sliding Type
Picture just for reference
Features
v Standard size, light weight and reasonable structure
v Slide out drawer for easy cable management
v Compact design for space saving
v Various panel plate to fit different adapter interface
v Easy for management and operation
Applications
v Telecommunications subscriber loop
v Fiber to the home (FTTH)
v LAN/WAN
v CATV
Specifications
|
Parameters
|
Specification
|
|
Max. No. of Cores
|
12/24
|
36
|
48
|
72
|
96
|
144
|
|
Adapter Type
|
SC/APC or SC/UPC
LC/APC or LC/UPC
|
|
Box Material
|
1.2mm Cold-rolled steel
|
|
Splicing Tray
|
24cores tray
|
|
Open Type
|
Sliding type
|
|
Dimensions (mm)
|
485*360*44
|
485*360*66
|
485*360*88
|
485*360*132
|
485*360*176
|
485*360*264
|
Standard Package
|
No.
|
Name
|
Unit
|
Quantity
|
|
1
|
Fiber Optic Distribution Frame
|
set
|
1
|
|
2
|
Cable Ties
|
pieces
|
According to fiber cores
|
|
3
|
Protective Sleeves
|
pieces
|
12, 24, 36, 48, 72, 96 or 144
|
Ordering Information
|
PN
|
Name
|
Description
|
|
DA-PP-S-12B-SC-1
|
Fiber Optic Distribution Frame
|
19-inch rack, 1U, sliding type; Max. 12 cores, SC adapter panel;
|
|
DA-PP-S-24B-SC-1
|
Fiber Optic Distribution Frame
|
19-inch rack, 1U, sliding type; Max. 24 cores, SC adapter panel;
|
|
DA-PP-S-36B-SC-1
|
Fiber Optic Distribution Frame
|
19-inch rack, 1.5U, sliding type; Max. 36 cores, SC adapter panel;
|
|
DA-PP-S-48B-SC-1
|
Fiber Optic Distribution Frame
|
19-inch rack, 2U, sliding type; Max. 48 cores, SC adapter panel;
|
|
DA-PP-S-72B-SC-1
|
Fiber Optic Distribution Frame
|
19-inch rack, 3U, sliding type; Max. 72 cores, SC adapter panel;
|
|
DA-PP-S-96B-SC-1
|
Fiber Optic Distribution Frame
|
19-inch rack, 4U, sliding type; Max. 96 cores, SC adapter panel;
|
|
DA-PP-S-144B-SC-1
|
Fiber Optic Distribution Frame
|
19-inch rack, 6U, sliding type; Max. 144 cores, SC adapter panel;
|
Note: FC TYPE Adapters and pigtails are optional
